Fujikura specialty cleavers
Maunt offers an extensive range of specialty Fujikura fiber optic cleavers. These cleavers are specially designed for use with specialized cleaving methods. They are perfect for precise and reliable cleaving and can be used in a variety of situations.
Fujikura specialty cleavers
- Fujikura cleavers
- Fully automated equipment
- Innovative models

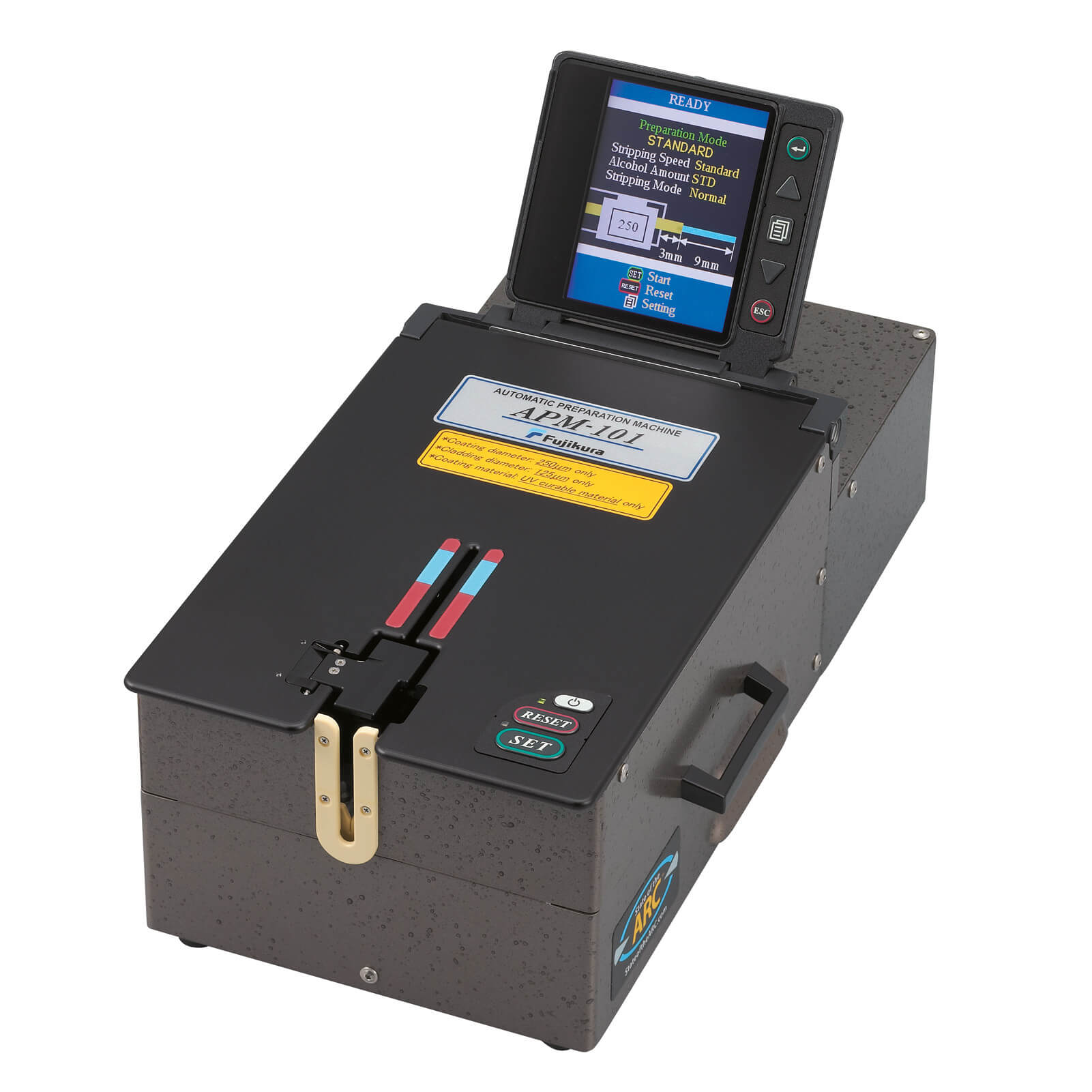

APM-101
The Fujikura APM-101 is suitable for the following fiber holders: FH-100-250 / FH-100-250-EV / FH-40-250.The Fujikura APM-101 is a fully automated fiber preparation machine. Within 23 seconds, the APM-101 strips the fiber of its outer layer without loss of quality, thoroughly cleans the fiber with alcohol to remove any coating residue, and always cleaves the fiber perpendicular to the fiber axis.
APM-102
The Fujikura APM-102 is suitable for the following fiber holders: FH-60-250The Fujikura APM-102 is a fully automated fiber preparation machine. Within 23 seconds, the APM-101 strips the fiber of its outer layer without loss of quality, thoroughly cleans the fiber with alcohol to remove any coating residue, and always cleaves the fiber perpendicular to the fiber axis.

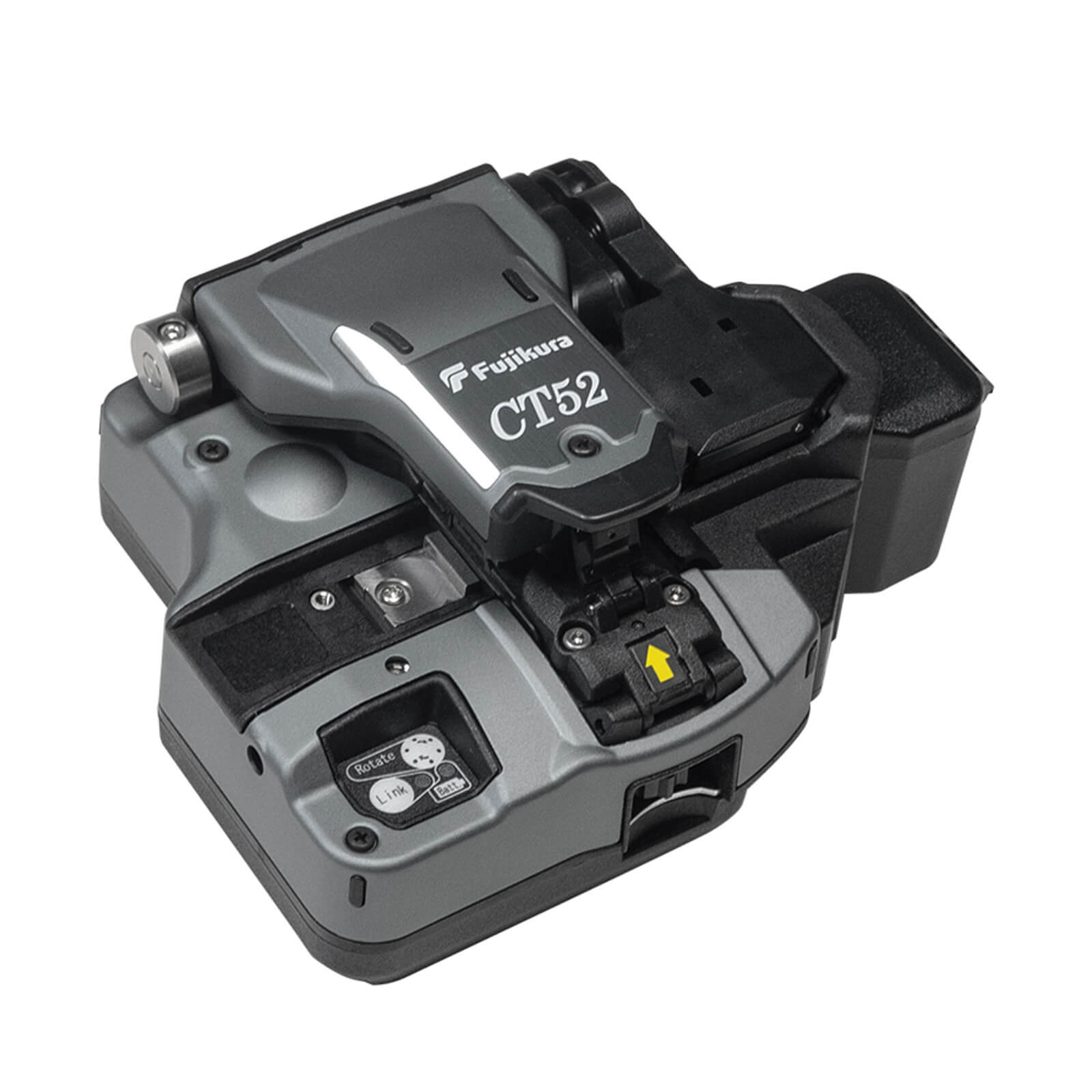

CT-52
The Fujikura CT-52 is designed for fibers with a cladding diameter of 125 µm.The Fujikura CT-52 is used to accurately cut glass fibers. This cleaver ensures that the fiber is cut straight, making it easy to attach it to another fiber splicing. The CT-52 also allows the cleave length to be reduced to 8 mm for fibers with a buffer of 900 μm and only 3 mm for fibers with coatings of 250 μm and 400 μm.

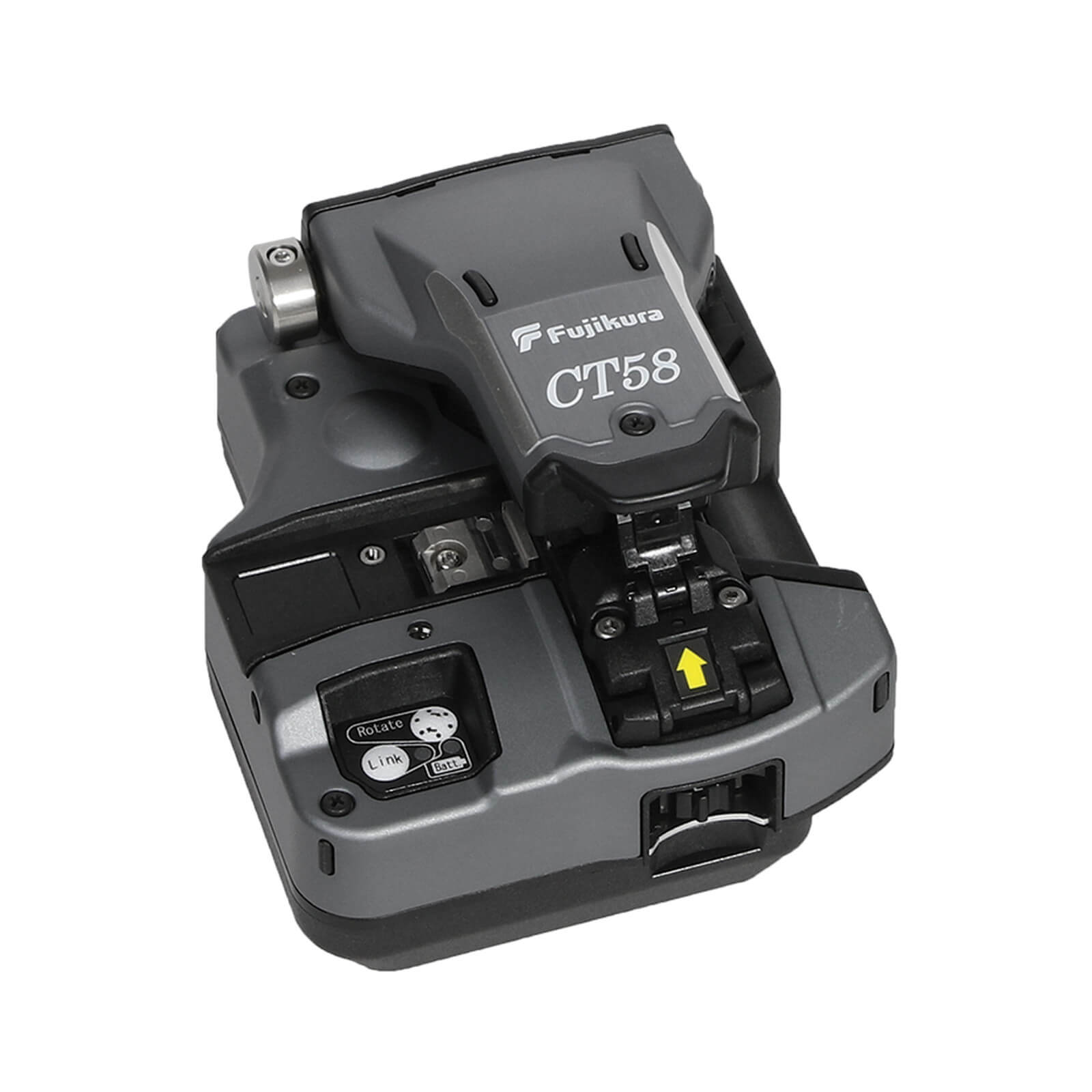

CT-58
The Fujikura CT-58 is designed for silica fibers with a cladding diameter of 80 µm.The Fujikura CT-58 is used to accurately cut glass fibers. This cleaver ensures that the fiber is cut off straight, making it easy to attach it to another fiber splicing. The CT-58 blade is designed for cleaving silica fibers with a cladding of 80 μm.

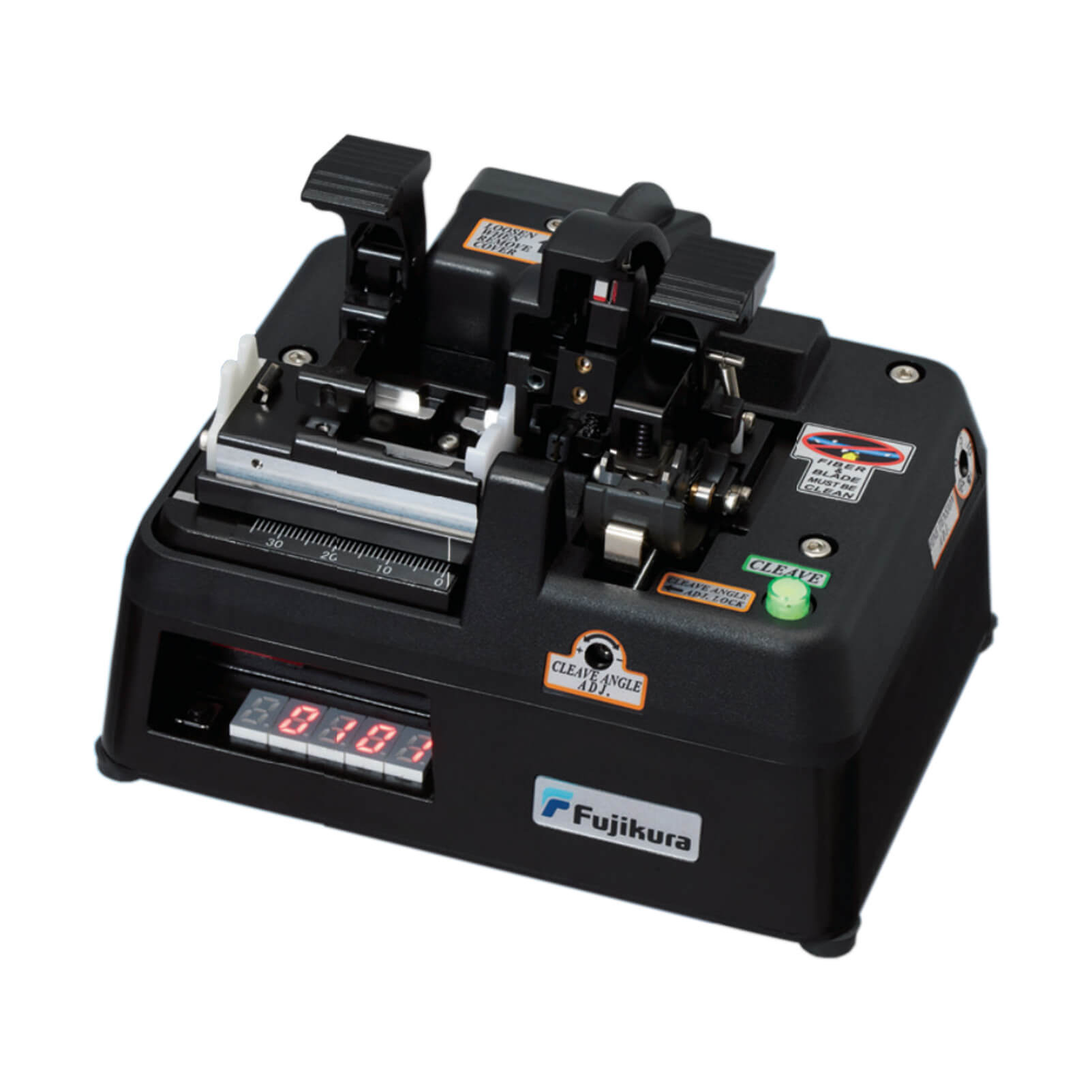

CT-101
The Fujikura CT-101 is suitable for the following fiber holders: FH-100.Fujikura's CT-101 cleaver is used for straight cutting of silica fibers with a sheath diameter of 80 µm to 250 µm and can also accurately cleave fibers at an angle. The CT-101 is compatible with FH-100 fiber holders. The adaptability of the CT-101 allows the cleave length to be adjusted from 3 mm to 40 mm, and the cleave angle is adjustable from 0 to 15 degrees.
CT-102
The Fujikura CT-102 is suitable for the following fiber holders: FH-60 series.Fujikura's CT-102 cleaver is used for straight cutting of silica fibers with a sheath diameter of 80 µm to 250 µm and can also accurately cleave fibers at an angle. The CT-102 is compatible with FH-60 and 70 series. The adaptability of the CT-102 allows the cleave length to be adjusted from 3 mm to 40 mm, and the cleave angle is adjustable from 0 to 15 degrees.
CT-110
The Fujikura CT-110 does not have an adjustable angle cleave function.The Fujikura CT-110 is designed to cleave silica glass fibers with cladding diameters from 80 to 250 µm. With its automated cleave tension function, it can apply tension to the fiber and meet your optimization needs.
CT-111
The Fujikura CT-111 features an adjustable angle cleave function.The Fujikura CT-111 is designed to cleave silica glass fibers with a cladding diameter of 80 to 250 µm. What sets the CT-111 apart from the CT-110 is its angle-cleave function.

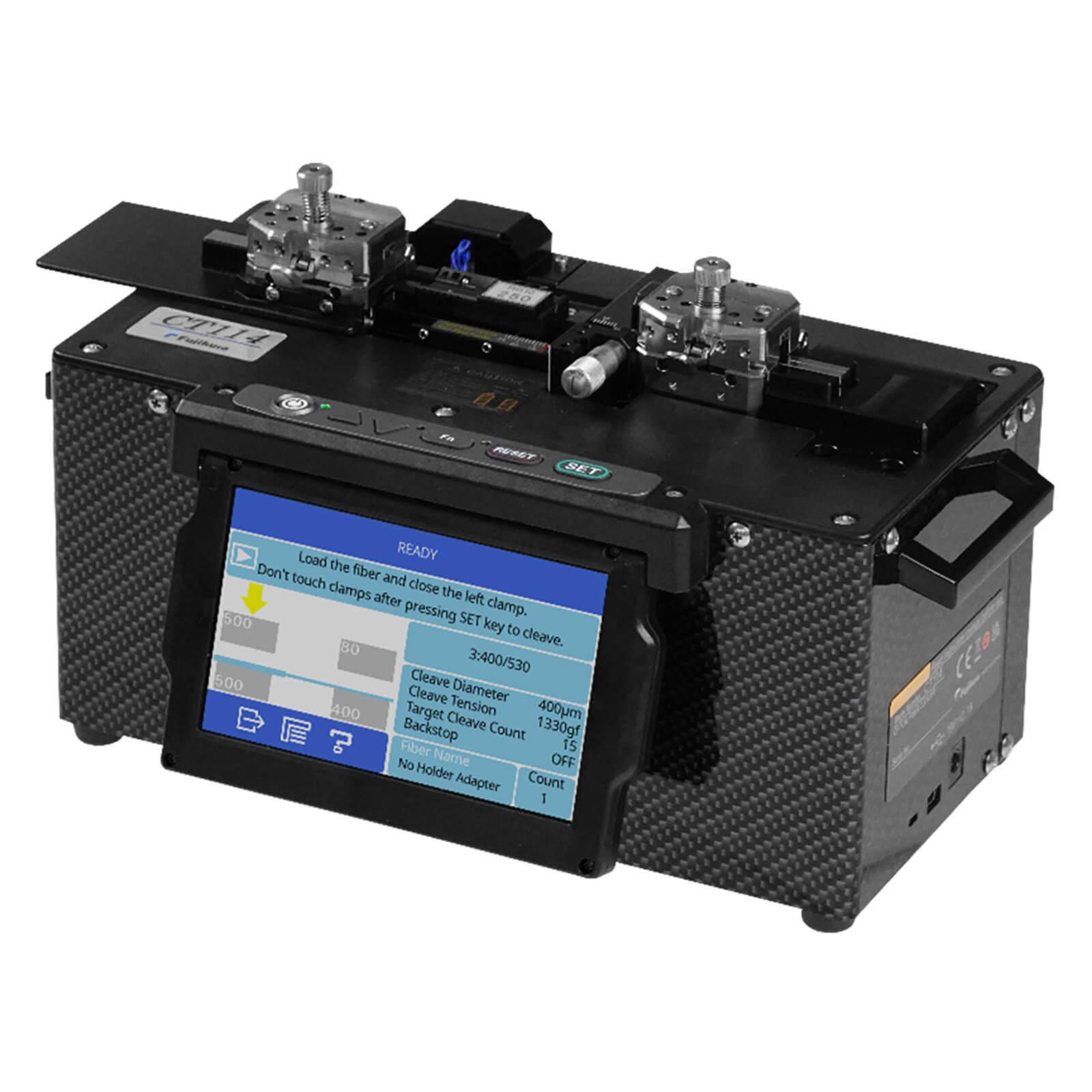

CT-114
The Fujikura CT-114 is designed for fibers with a cladding diameter of 80 - 660 µm.The Fujikura CT-114 is widely used in fiber preparation for the fusion splicing of standard data communication fibers, large-diameter octagonal or round fibers (LDF), polarization retaining fibers, photonic crystal fibers and even for the production of components with capillary tubes, bulb lenses, end caps and more. The CT-114 is designed for cleaving glass fibers with cladding diameters between 80 and 660 μm.
CT-115
The Fujikura CT-115 is designed for fibers with a cladding diameter of 80 - 1250 µm.The Fujikura CT-115 is widely used in fiber preparation for the fusion splicing of standard data communication fibers, large diameter octagonal or round fibers (LDF), polarization retaining fibers, photonic crystal fibers and even for the production of components with capillary tubes, sphere lenses, end caps and more. The CT-115 is designed for cleaving glass fibers with cladding diameters between 80 and 1250 μm.

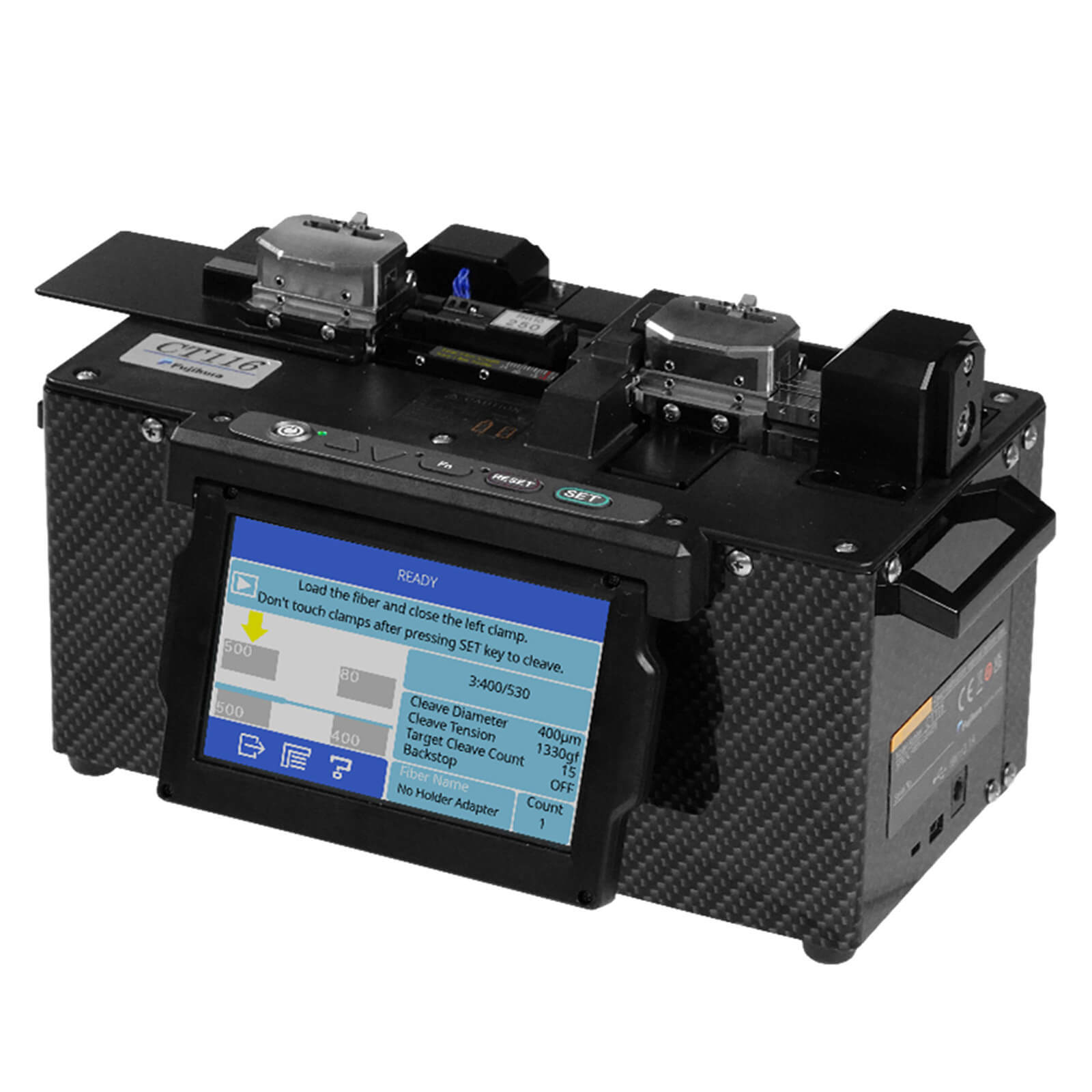

CT-116
The Fujikura CT-116 is designed for fibers with a cladding diameter of 80 - 1250 µm.The Fujikura CT-116 is widely used in fiber preparation for the fusion splicing of standard data communication fibers, large-diameter octagonal or round fibers (LDF), polarization retaining fibers, photonic crystal fibers and even for the production of components with capillary tubes, bulb lenses, end caps and more. The CT-116 is designed for cleaving glass fibers with cladding diameters between 80 and 1250 μm.
