Fiber optic enclosure BPEO S1.5, 1x drop, 1x bracket, Corning

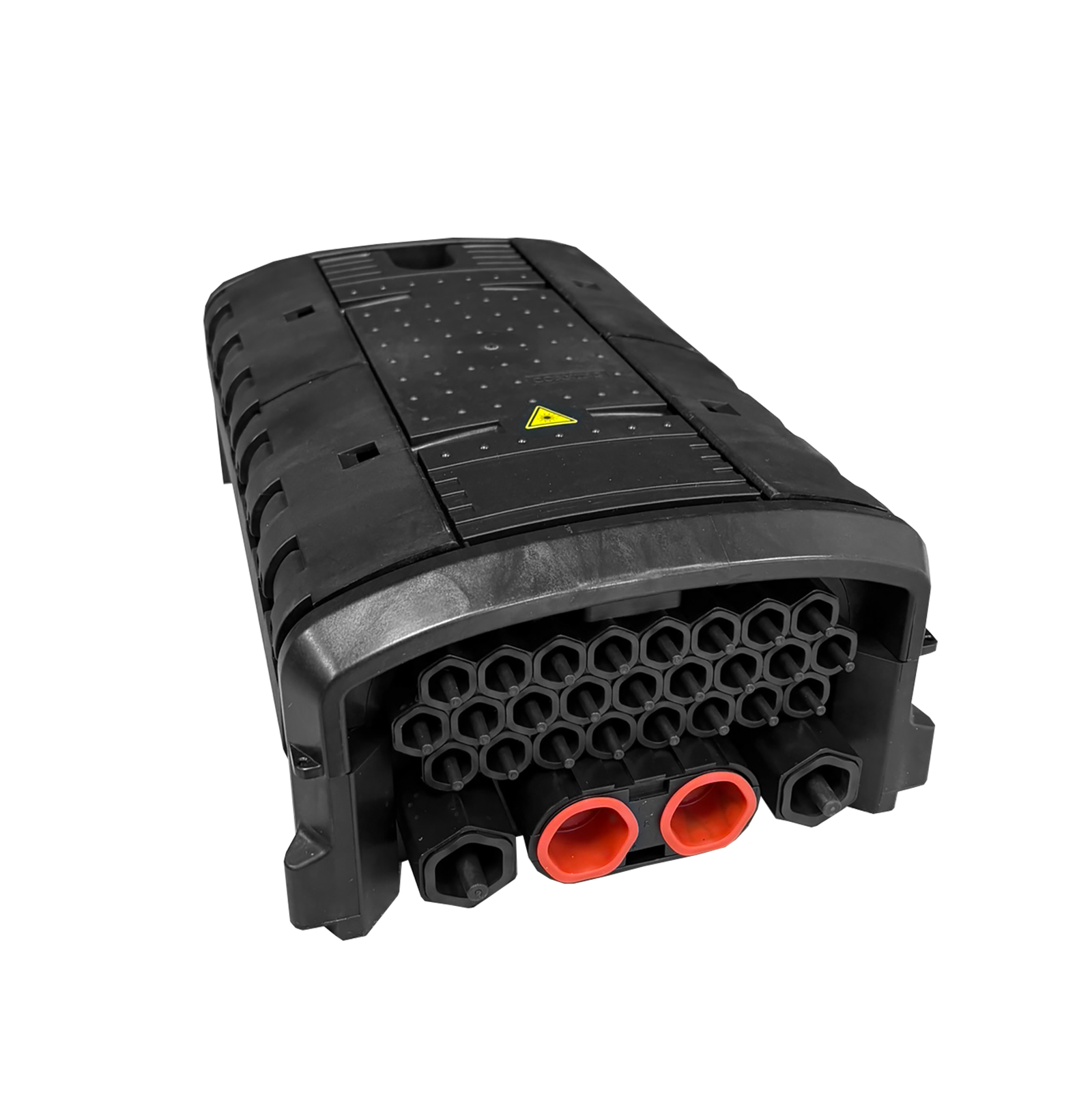

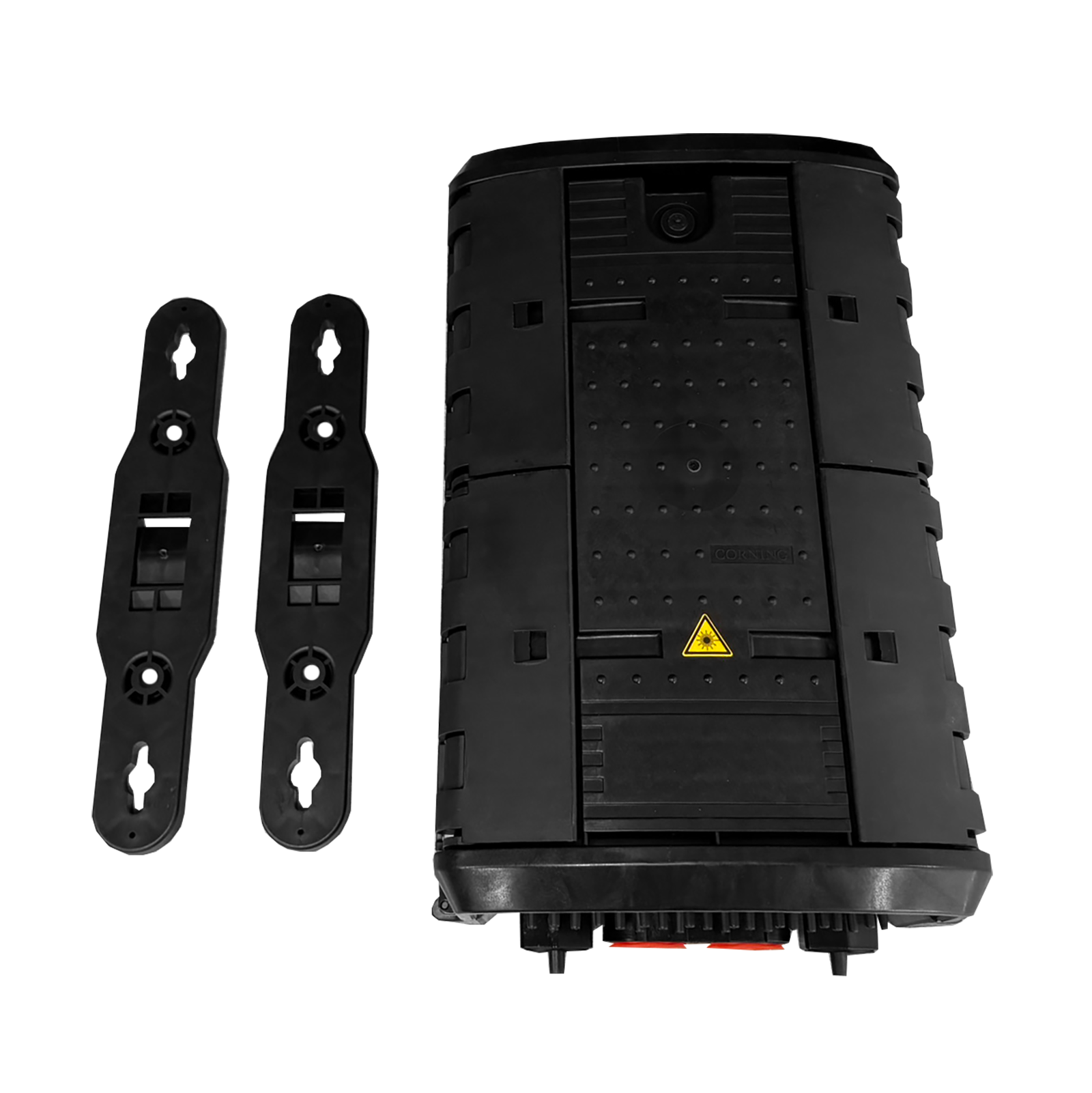

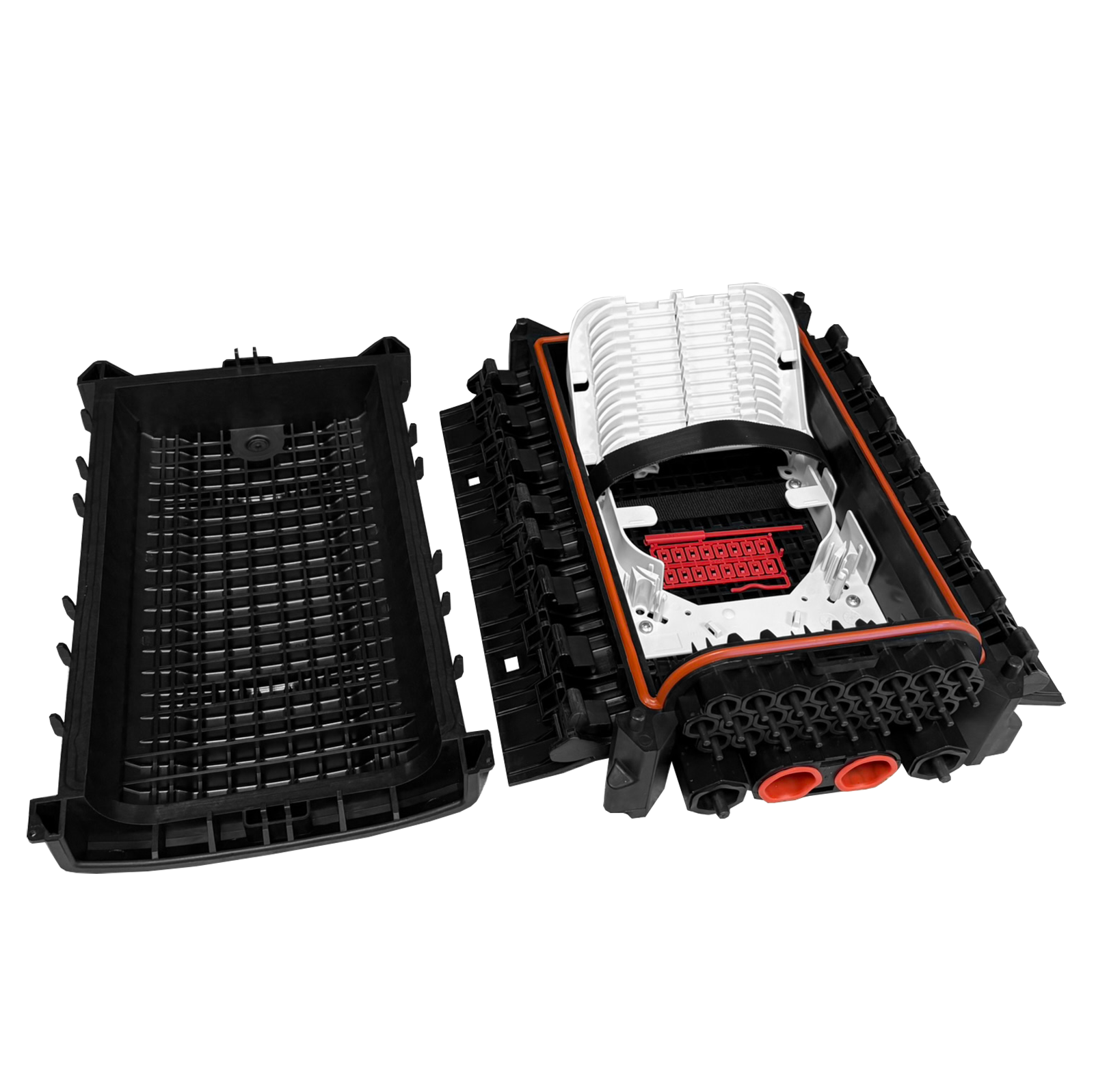

Corning's BPEO S1.5 is a compact Fiber optic enclosure suitable for smaller FTTH networks or situations with limited space. This version offers 2 input ports for 4 to 12 mm cables, 2 ports for 4 to 18 mm cables and 25 input ports for 3 to 7 mm cables. The socket comes with a wall bracket for easy mounting. Thanks to its modular design, the Fiber optic enclosure can be flexibly used in various network infrastructures. The enclosure is IP68-rated, making the Fiber optic enclosure fully dust- and waterproof. Installation is quick and efficient thanks to the tool-free locking system and smart internal organization. Suitable for both wall mounting and applications in street cabinets or handholes. With space for up to 12 welding cassettes, this Fiber optic enclosure offers capacity for 144 splices in standard configuration, or even 288 splices when using high-density trays.
